Mainboard Gigabyte B560M D3H

Mã SP: B560M D3H Lượt xem: 2541

- Mainboard Gigabyte - Intel B360 Ultra Durable motherboard with USB 3.1 Gen2 Type-A, Intel GbE LAN with 25KV protection, PCIe Gen3 x4 M.2, 7 colors RGB LED strips support, Anti-Sulfur Resistor, Smart Fan5, DualBIOS™, CEC 2019 ready - Supports 9th and 8th Gen Intel® Core™ Processors - Dual Channel Non-ECC Unbuffered DDR4

Tình trạng:	Còn hàng
Bảo hành:	36 Tháng

2.950.000

[Giá đã bao gồm VAT]

Số lượng: Đặt mua ngayNhanh chóng, thuận tiện

Hãy gọi ngay vào Hotline để được tư vấn trực tiếp về sản phẩm
Kinh Doanh Kinh Doanh 1 Kinh Doanh 2	Kế toán công nợ Thanh Hằng	Kế toán hóa đơn Hóa Đơn Phone/Zalo: 0918382260 Phone/Zalo: 0948900911 Email: [email protected] [email protected]

Thông tin sản phẩm

Mô tả

Bình luận

CPU	1. Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
	2. L3 cache varies with CPU
	(Please refer "CPU Support List" for more information.)

Chipset	1. Intel® B360 Express Chipset

Memory	1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
	2. Dual channel memory architecture
	3. Support for DDR4 2666/2400/2133 MHz memory modules
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
	* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
	(Please refer "Memory Support List" for more information.)

Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
	2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
	* The DVI-D port does not support D-Sub connection by adapter.
	3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
	4. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
	* Support for HDMI 1.4 version and HDCP 2.2.
	Support for up to 3 displays at the same time
	Maximum shared memory of 1 GB
	Actual support may vary by CPU

Audio	1. Realtek® ALC892 codec
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	4. Support for S/PDIF Out

LAN	1. Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots	1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
	3. 1 x PCI Express x1 slot
	(All of the PCI Express slots conform to PCI Express 3.0 standard.)
	4. 1 x PCI slot

Multi-Graphics Technology	1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Storage Interface	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
	2. 6 x SATA 6Gb/s connectors
	Intel® Optane™ Memory Ready
USB	Chipset:
	1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
	2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
	3. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	4. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x CPU fan header
	4. 3 x system fan headers
	5. 1 x RGB LED strip header
	6. 1 x M.2 Socket 3 connector
	7. 6 x SATA 6Gb/s connectors
	8. 1 x front panel header
	9. 1 x front panel audio header
	10. 1 x S/PDIF Out header
	11. 1 x USB 3.1 Gen 1 header
	12. 2 x USB 2.0/1.1 headers
	13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	14. 1 x serial port header
	15. 1 x parallel port header
	16. 1 x Clear CMOS jumper

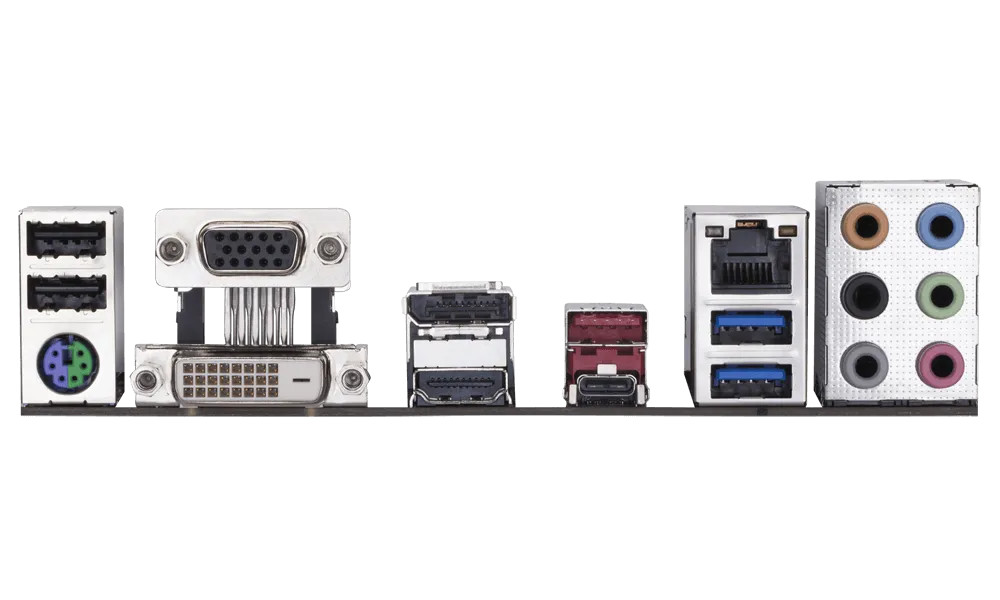

Back Panel Connectors	1. 1 x PS/2 keyboard/mouse port
	2. 1 x D-Sub port
	3. 1 x DVI-D port
	4. 1 x DisplayPort
	5. 1 x HDMI port
	6. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
	7. 1 x USB 3.1 Gen 2 Type-A port (red)
	8. 2 x USB 3.1 Gen 1 ports
	9. 2 x USB 2.0/1.1 ports
	10. 1 x RJ-45 port
	11. 6 x audio jacks

I/O Controller	1. iTE® I/O Controller Chip

H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Overheating warning
	5. Fan fail warning
	6. Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS	1. 2 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. Support for DualBIOS™
	4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features	1. Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	3D OSD
	@BIOS
	AutoGreen
	Cloud Station
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	Platform Power Management
	RGB Fusion
	Smart Backup
	Smart Keyboard
	Smart TimeLock
	Smart HUD
	System Information Viewer
	USB Blocker
	V-Tuner
	2. Support for Q-Flash
	3. Support for Xpress Install

Bundled Software	1. Norton® Internet Security (OEM version)
	2. cFosSpeed

Operating System	1. Support for Windows 10 64-bit

Form Factor	1. Micro ATX Form Factor; 24.4cm x 23.0cm
