Mainboard ASROCK Z590 PHANTOM GAMING 4/ac (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4)

Mã SP: Z590 Phantom Gaming 4/ac    Lượt xem: 2254
- Socket: LGA1200 hỗ trợ CPU thế hệ 10 và thế hệ 11 - Kích thước: ATX - Khe cắm RAM: 4 khe, tối đa 128GB - Khe cắm mở rộng: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1 - Khe cắm ổ cứng: 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
Tình trạng: Còn hàng
Bảo hành: 36 Tháng
Số lượng:    Đặt mua ngayNhanh chóng, thuận tiện
Hãy gọi ngay vào Hotline để được tư vấn trực tiếp về sản phẩm
Kinh Doanh
Kinh Doanh 1
Kinh Doanh 2
Kế toán công nợ
Thanh Hằng
Kế toán hóa đơn
Hóa Đơn
Phone/Zalo: 0918382260
Phone/Zalo: 0948900911
Email: [email protected] [email protected]

Sản phẩm

Bo mạch chủ

Tên Hãng

ASROCK

Model

Z590 Phantom Gaming 4/ac

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4 x DDR4 DIMM Slots, tối đa 128GB

- 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
- 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)

Khe cắm mở rộng

11th Gen Intel® Core™ Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
10th Gen Intel® Core™ Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*

- 3 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module and Intel® CNVi (Integrated WiFi/BT)

Ổ cứng hỗ trợ

- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 18), NCQ, AHCI and Hot Plug*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel® Core™ Processors)**
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

Cổng kết nối (Internal)

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

Cổng kết nối (Back Panel)

- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless

LAN
-  Gigabit LAN 10/100/1000 Mb/s
WIFI
- Intel® 802.11ac WiFi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 5.1 + High speed class II

Kích cỡ

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Mô tả

Đánh giá Mainboard ASROCK Z590 PHANTOM GAMING 4/ac Chính Hãng, Giá Tốt

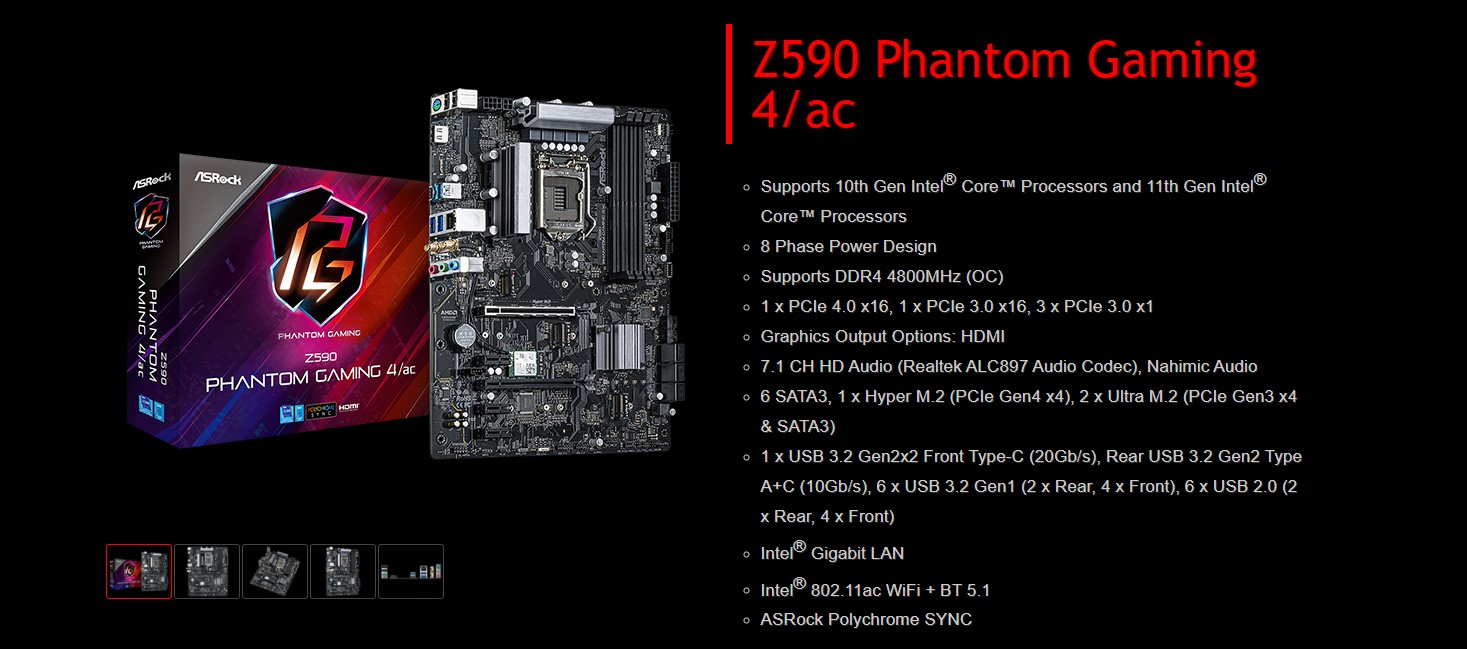

Mainboard ASROCK Z590 PHANTOM GAMING 4/ac là bo mạch chủ sử dụng chipset Z590 của Intel thuộc phân khúc trung cấp của Asrock. Bo mạch chủ này sử dụng socket LGA 1200 có thể chạy được CPU Intel Core thế hệ 10 & 11, hỗ trợ PCI-E Gen 4.0 mới nhất.

Mainboard ASROCK Z590 PHANTOM GAMING 4ac

Thiết kế

Mainboard ASROCK Z590 PHANTOM GAMING 4/ac sở hữu thiết kế mạnh mẽ với đầy đủ các tấm tản nhiệt cách điệu. Đây là bo mạch chủ kích thước ATX ở phân khúc trung cấp có gần như đầy đủ mọi tính năng thời thượng nhất dành cho người dùng.

Trang bị

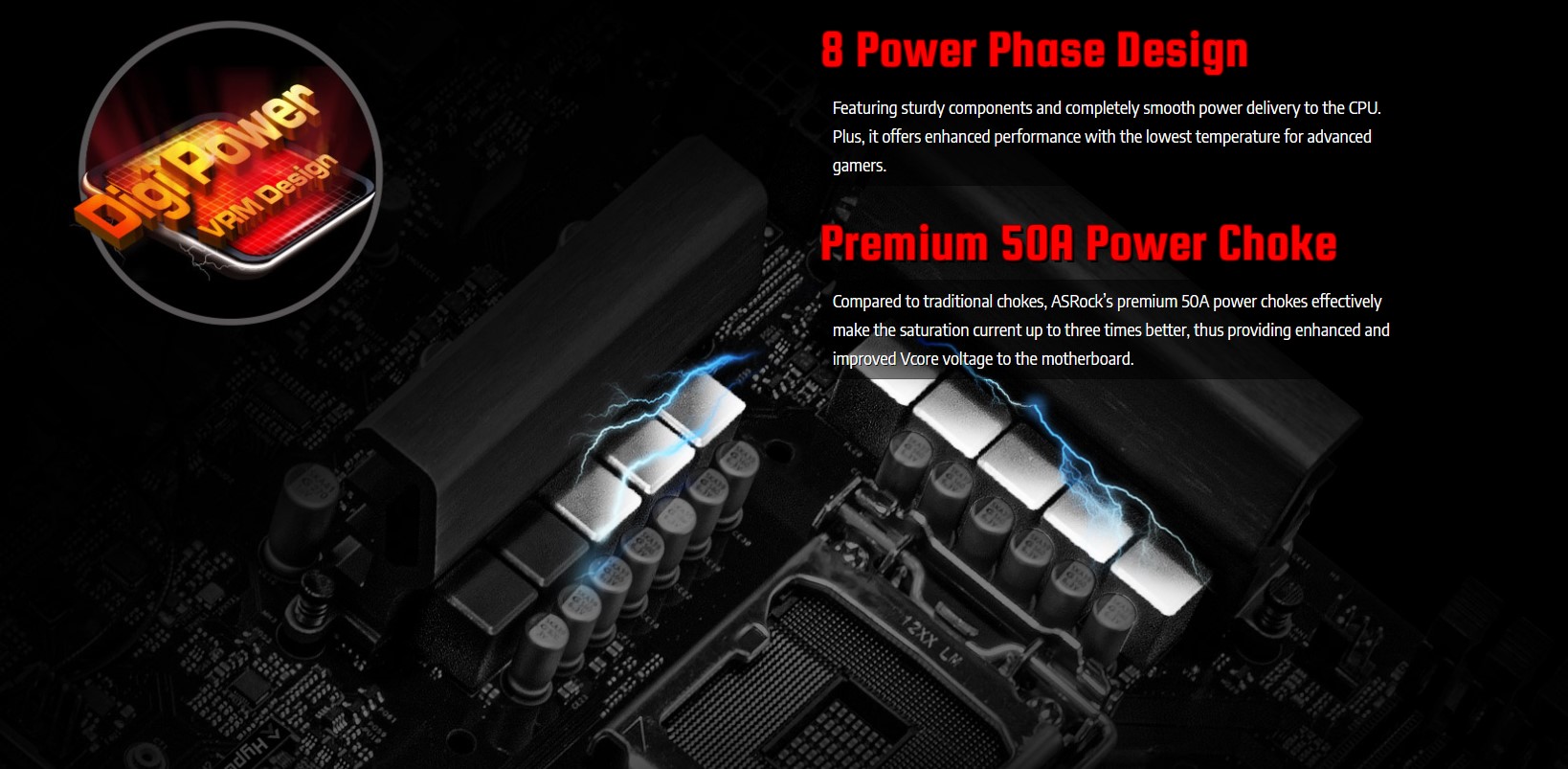

  • 8 phase nguồn, PWM kỹ thuật số

Mainboard ASROCK Z590 PHANTOM GAMING 4ac

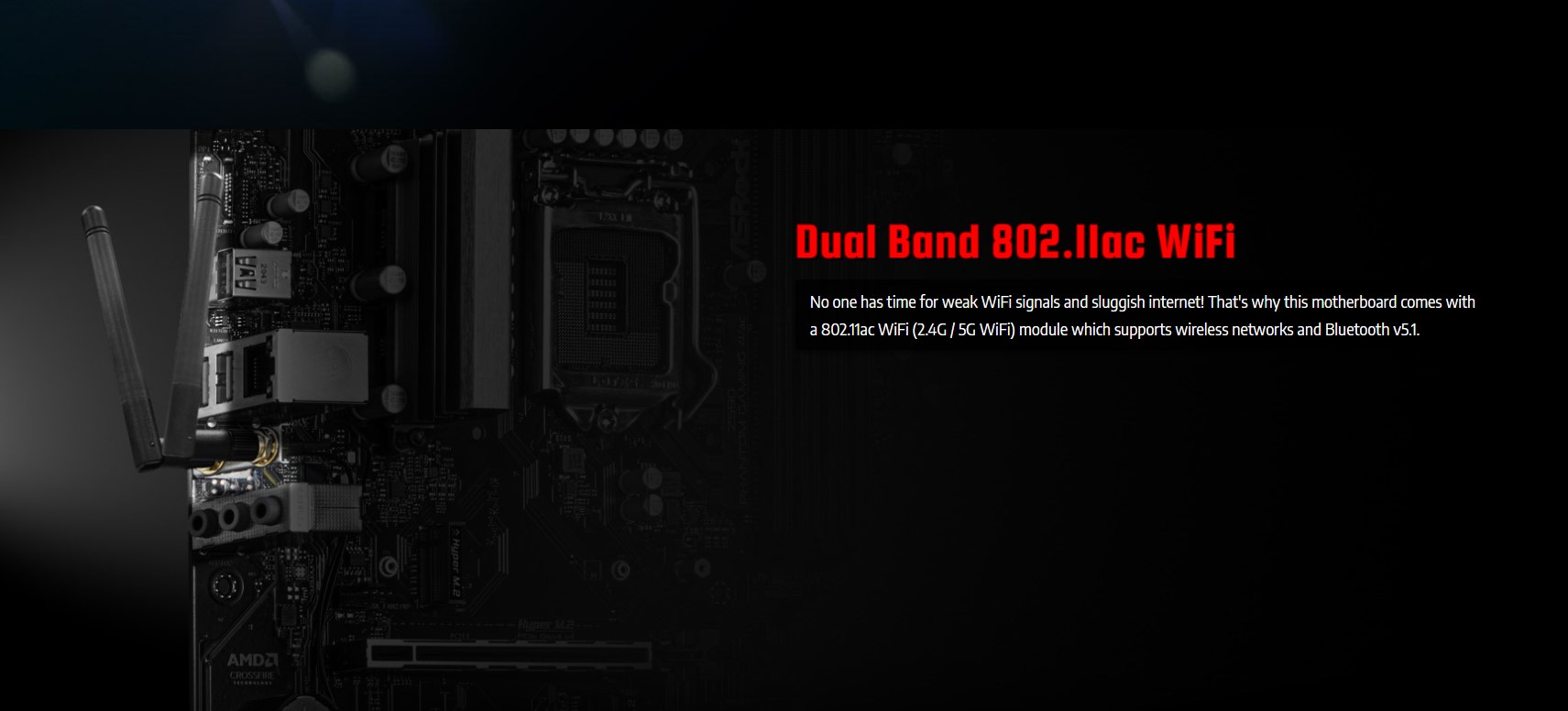

  • Intel Gigabit Lan, Dual Band Wifi

Mainboard ASROCK Z590 PHANTOM GAMING 4ac

  • Khe PCI-E bọc thép
  • 8+4 pin cấp nguồn CPU

Tính năng

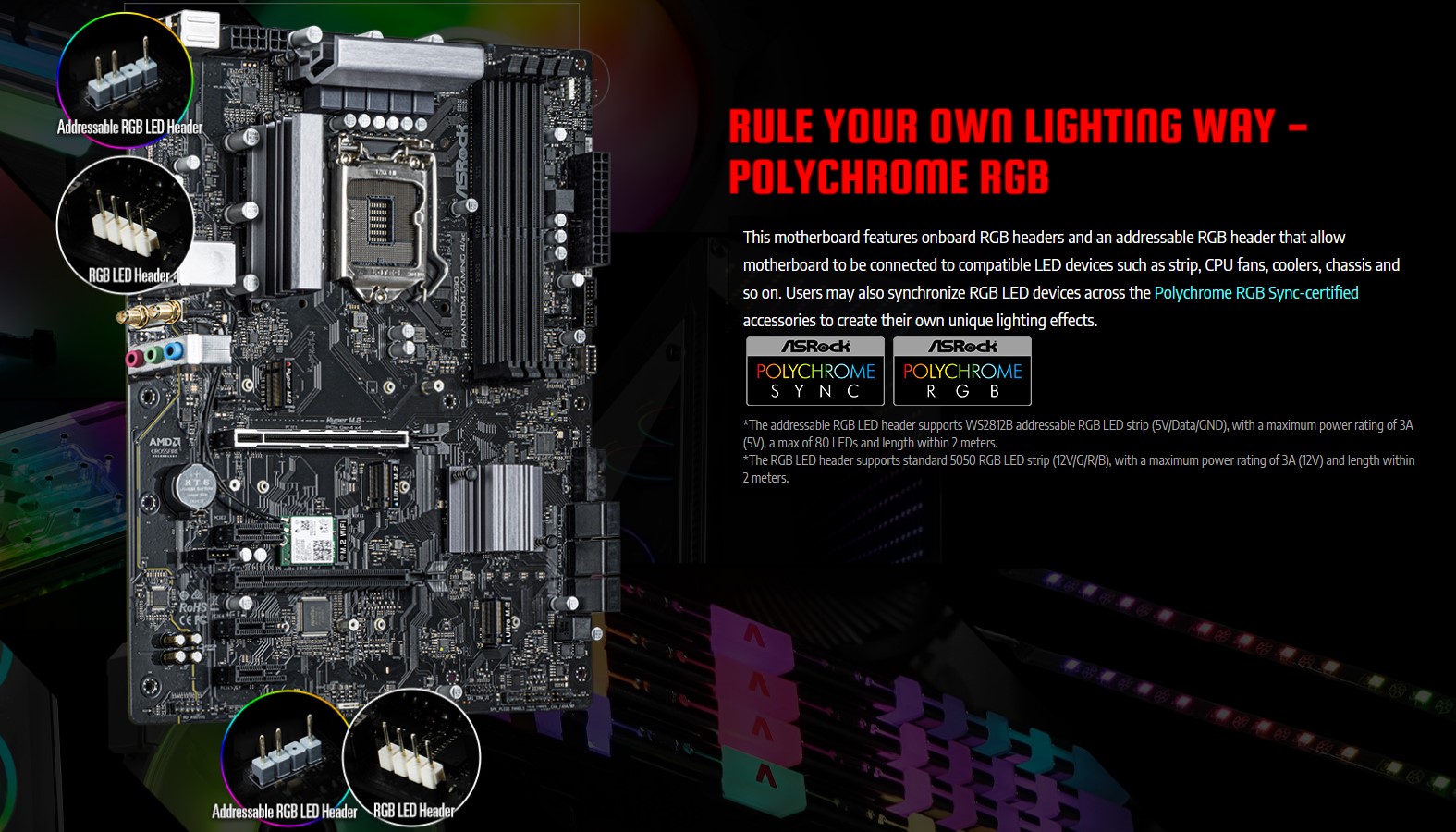

  • Polychrome RGB: Đồng bộ hóa LED RGB cho tất cả các thiết bị

Mainboard ASROCK Z590 PHANTOM GAMING 4ac

  • Nahimic Audio: Trải nghiệm âm thanh chất lượng cao với tụ và DAC cao cấp
