NAS Synology DiskStation DS119j

Mã SP: DS119j    Lượt xem: 118
Synology DS119j NAS 1-Bay Dung lượng lưu trữ tối đa 16TB Thiết bị ghi hình NVR 5 camera (đã bao gồm 2 camera miễn phí) Ổ cứng đề xuất cho lưu trữ dữ liệu: Seagate IronWolf, Seagate IronWolf Pro hoặc Western RED, Western RED Pro Ổ cứng đề xuất cho camera: Seagate SkyHawk, Western Purple Synology DS119j NAS 1-Bay với dung lượng lưu trữ 16TB và cho phép gắng 5 camera (đã bao gồm 2 camera miễn phí), phù hợp sử dụng trong lưu trữ dữ liệu doanh nghiệp.
Tình trạng: Còn hàng
Bảo hành: 24 Tháng
[Giá đã bao gồm VAT]
Số lượng:    Đặt mua ngayNhanh chóng, thuận tiện
Hãy gọi ngay vào Hotline để được tư vấn trực tiếp về sản phẩm
Kinh Doanh
Kinh Doanh 1
Kinh Doanh 2
Kinh Doanh 3
Kế toán công nợ
Thanh Hằng
Kế toán hóa đơn
Hóa Đơn
Phone/Zalo: 0918382260
Phone/Zalo: 0933409990
Hardware Specifications
CPU ModelMarvell Armada 3700 88F3720
CPU Architecture64-bit
CPU FrequencyDual Core 800 MHz
Hardware Encryption Enginex
System Memory256 MB DDR3L
NotesSynology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Drive Bays1
Compatible Drive Type* (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD (with optional 2.5″ Disk Holder)
Maximum Internal Raw Capacity16 TB (16 TB drive x 1) (Capacity may vary by RAID types)
Maximum Single Volume Size108 TB
Hot Swappable Drivex
  • “Compatible drive type” indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
External Ports
RJ-45 1GbE LAN Port1
USB 2.0 Port2
File System
Internal Drives
  • EXT4
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
NotesexFAT Access is purchased separately in Package Center.
Size (Height x Width x Depth)166 mm x 71 mm x 224 mm
Weight0.7 kg
System Fan60 mm x 60 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Low-power Mode
Power Recoveryx
Noise Level*16.9 dB(A)
Scheduled Power On/Offx
Wake on LAN/WANx
Power Supply Unit / Adapter36W
AC Input Power Voltage100V to 240V AC
Power Frequency50/60Hz, Single Phase
Power Consumption*10.04 W (Access)
5.01 W (HDD Hibernation)
British Thermal Unit34.26 BTU/hr (Access)
17.09 BTU/hr (HDD Hibernation)
Operating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • CCC
  • RCM
  • KC
Warranty2 Years
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
DSM Specifications
Storage Management
Maximum Internal Volume Number1
Maximum iSCSI Target Number10
Maximum iSCSI LUN10
Supported RAID TypeBasic
File Services
Maximum Concurrent CIFS/AFP/FTP Connections50
Windows Access Control List (ACL) Integrationx
NFS Kerberos Authenticationx
Account & Shared Folder
Maximum Local User Accounts512
Maximum Local Groups128
Maximum Shared Folder256
Maximum Shared Folder Sync Tasks2
Log Centerx
Syslog Events per Second50
Add-on Packages (learn more about the complete add-on package list)
Cloud Station Serverx
Recommended Number of Hosted Files10,000
Recommended Number of Concurrent Sync Clients50 (the number of connections that can be maintained when the recommended number of hosted files was reached)
  • The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time.
  • The maximum number of hosted files refers to the maximum number of files that can be indexed and hosted by the Cloud Station Server service. RAM expansion was not used during testing.
  • Non-encrypted shared folders were used during the aforementioned testing.
Download Stationx
Maximum Concurrent Download Tasks30
NotesDownload Station version requirement: 3.8.14 or later version
exFAT Access (optional)x
Media Serverx
DLNA Compliancex
Surveillance Stationx
Maximum IP cam (Licenses required)5 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)*150 FPS @ 720p (1280×720)
120 FPS @ 1080p (1920×1080)
60 FPS @ 3M (2048×1536)
30 FPS @ 5M (2591×1944)
15 FPS @ 4K (3840×2160)
Total FPS (H.265)*150 FPS @ 720p (1280×720)
150 FPS @ 1080p (1920×1080)
90 FPS @ 3M (2048×1536)
60 FPS @ 5M (2591×1944)
30 FPS @ 4K (3840×2160)
Total FPS (MJPEG)*40 FPS @ 720p (1280×720)
10 FPS @ 1080p (1920×1080)
10 FPS @ 3M (2048×1536)
6 FPS @ 5M (2591×1944)
NotesSurveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Synology Drivex
Recommended Number of Hosted Files10,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Sync Clients5 (the number of connections that can be maintained when the recommended number of hosted files was reached)
  • Exceeding the limits above may result in longer response time in file operations.
  • EXT4 file system and non-encrypted shared folders were used during the aforementioned testing.
Video Stationx
Video TranscodingGroup 2
VPN Serverx
Maximum Connections10
Environment & Packaging
EnvironmentRoHS Compliant

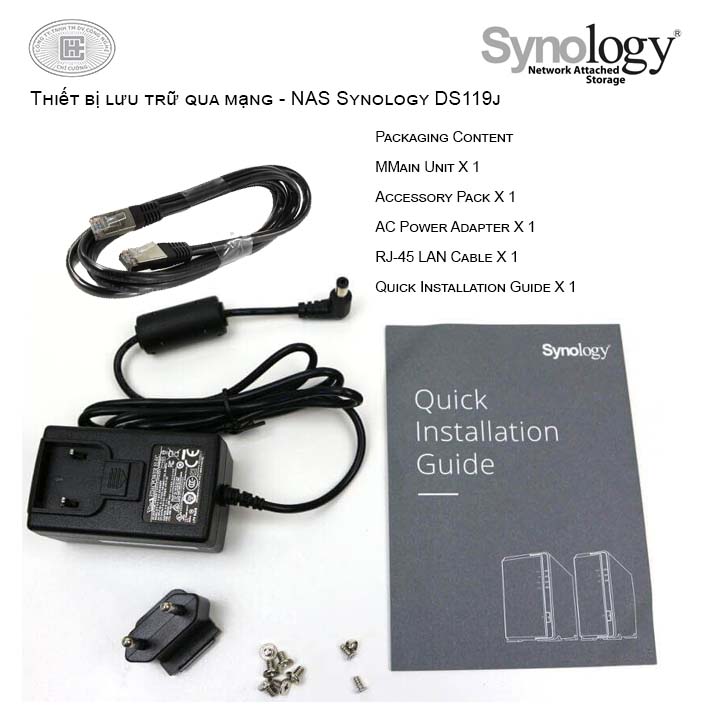

Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • RJ-45 LAN Cable X 1
  • Quick Installation Guide X 1
Optional Accessories
  • Surveillance Device License Pack
  • VS360HD
  • VS960HD
  • Disk Holder: Type C
